Product Summary
The AT89C52-24JI is a low-power, high-performance CMOS 8-bit microcomputer with 8K bytes of Flash programmable and erasable read only memory (PEROM) . The AT89C52-24JI is manufactured using Atmel high density nonvolatile memory technology and is compatible with the industry standard 80C51 and 80C52 instruction set and pinout. The AT89C52-24JI is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications.
Parametrics
AT89C52-24JI absolute maximum ratings: (1) Operating Temperature: -55°C to +125°C; (2) Storage Temperature: -65°C to +150°C; (3) Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4) Maximum Operating Voltage: 6.6V; (5) DC Output Current: 15.0mA.
Features
AT89C52-24JI features: (1) Compatible with MCS-51 Products; (2) 8K Bytes of In-System Reprogrammable Flash Memory; (3) Fully Static Operation: 0Hz to 24MHz; (4) Three-Level Program Memory Lock; (5) 256 x 8-Bit Internal RAM; (6) 32 Programmable I/O Lines; (7) Three 16-Bit Timer/Counter; (8) Eight Interrupt Sources; (9) Programmable Serial Channel; (10) Low Power Idle and Power Down Modes.

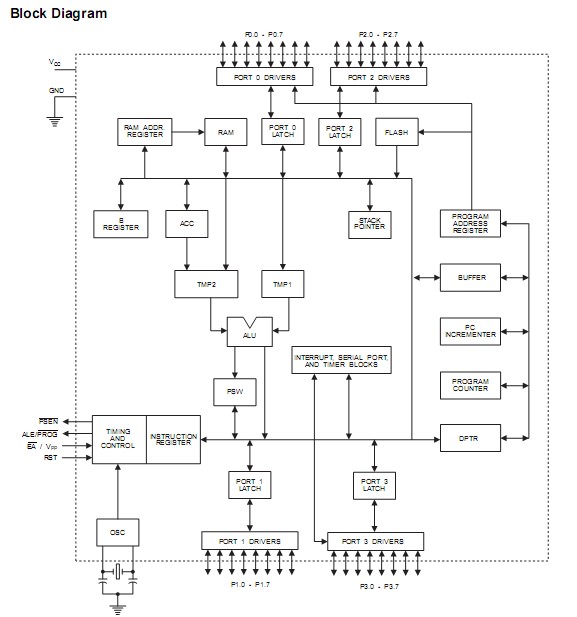

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AT89C52-24JI |
![]() Atmel |
![]() 8-bit Microcontrollers (MCU) 8K Flash 24M |
![]() Data Sheet |
![]() Negotiable |
|
||||||
