Product Summary

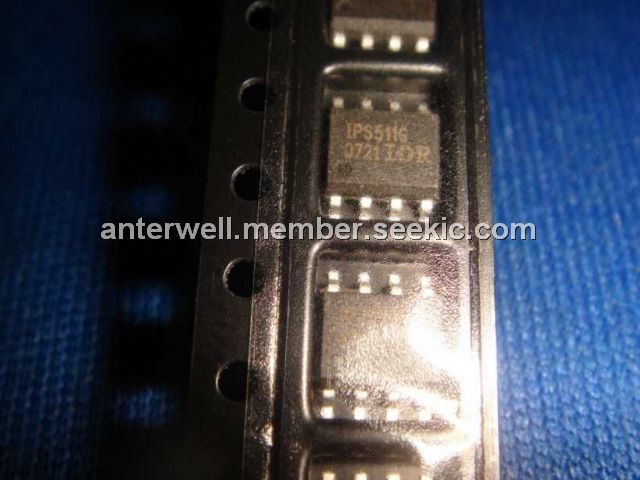

The IPS511G is a fully protected five terminal high side switch with built in short-circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The IPS511G will automatically restart after the junction has cooled 7℃ below Tshutdown. A diagnostic pin is provided for status feedback of short-circuit, over-temperature and open load detection. The double level shifter circuitry allows large offsets between the logic ground and the load ground.
Parametrics
IPS511G absolute maximum ratings: (1)Maximum output voltage:Vcc-50V to Vcc+0.3V; (2)Maximum logic ground to load ground offset:Vcc-50V to Vcc+0.3V; (3)Maximum Input voltage:-0.3V to 5.5V; (4)Maximum IN current:-5mA to 10mA; (5)Maximum diagnostic output voltage:-0.3V to 5.5V; (6)Maximum diagnostic output current:-1mA to 10mA; (7)Diode max. pulsed current:10A; (8)Electrostatic discharge voltage (Human Body):4000V; (9)Electrostatic discharge voltage (Machine Model):500V ; (10)Max. storage & operating junction temp.:-40℃ to +150℃; (11)Maximum Vcc voltage:50V.
Features
IPS511G features: (1)Over temperature protection (with auto-restart); (2)Short-circuit protection (current limit); (3)Active clamp; (4)E.S.D protection; (5)Status feedback; (6)Open load detection; (7)Logic ground isolated from power ground.

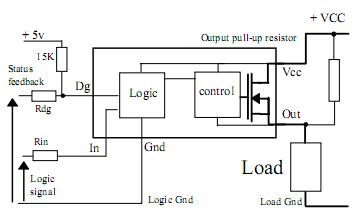

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IPS511G |
International Rectifier |
Power Driver ICs IPS 1 Ch Low Side Driver |
Data Sheet |
|
|
||||||||||||
|
IPS511GTR |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
||||||||||||
