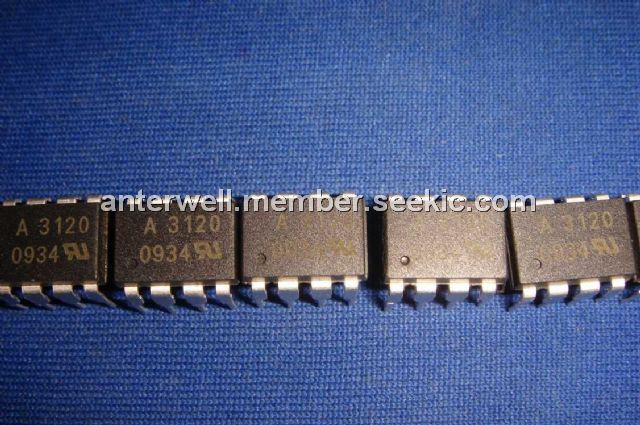

HCPL3120

2.5A maximum peak output current, DIP-8, IGBT Gate Drive Optocoupler, 500ns maximum switching speeds

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~0.80

PartNumber:: HCPL3120

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-06

From Other Seller

Part Number:HCPL3120
US $0.70 - 0.80
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HCPL3120 is a 2.5 Amp Output Current IGBT Gate Drive Optocoupler. The HCPL3120 is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The applications of the HCPL3120 are IGBT/MOSFET gate drive, AC/Brushless DC motor drives, Industrial inverters, Switch mode power supplies.

Parametrics

HCPL3120 absolute maximum ratings: (1)Storage Temperature:-55℃ to 125℃; (2)Operating Temperature:-40℃ to 100℃; (3)Average Input Current:25mA; (4)Peak Transient Input Current:1.0A ; (5)Reverse Input Voltage:5Volts; (6)“High” Peak Output Current:2.5A; (7)“Low” Peak Output Current:2.5A; (8)Supply Voltage:0V to 35V; (9)Input Current (Rise/Fall Time):500ns; (10)Output Voltage:0V to VCC; (11)Output Power Dissipation:250mW; (12)Total Power Dissipation:295mW.

Features

HCPL3120 features: (1)2.5 A maximum peak output current; (2)2.0 A minimum peak output current; (3)25 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1500 V; (4)0.5V maximum low level output voltage(VOL) Eliminates need for negative gate drive; (5)ICC = 5 mA maximum supply current; (6)Under Voltage Lock-Out protection (UVLO) with hysteresis; (7)Wide operating VCC range: 15 to 30 Volts; (8)500 ns maximum switching speeds; (9)Industrial temperature range: -40℃ to 100℃.

Diagrams
