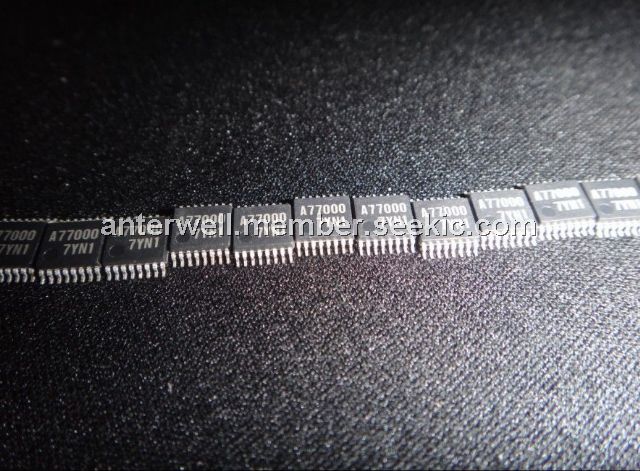

Product Summary

The LLA77000V-TLM-E is a VHF band RF module that supports US3, 4ch Compatible.

Parametrics

LLA77000V-TLM-E maximum ratings: (1) Maximum supply rating VCC max: 7.0V; (2) Allowable power dissipation Pd max:350mW (Ta≤75°C) ; (3) Operating temperature Topr: -20 to +75°C; (4) Storage temperature Tstg: -55 to +75°C.

Features

LLA77000V-TLM-E features: (1) RF VCO (AGC) ; (2) RF Mixer; (3) RF Buffer; (4) Video clamp; (5) White clipping; (6)Audio FM; (7) 4V regulator; (8) Reference OSC.

Diagrams

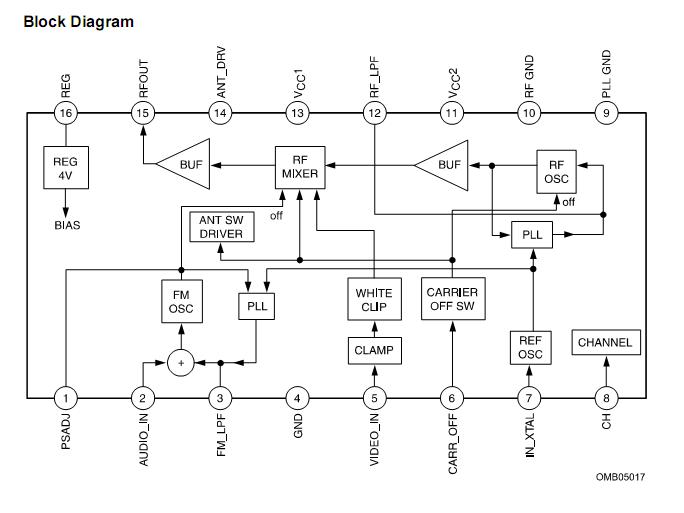

LLA77000V-TLM-E Block Diagram

LA77000NV
LA77000NV
Other

Data Sheet
Negotiable
LA77000V-A-TLM-E
LA77000V-A-TLM-E
ON Semiconductor
Modulator / Demodulator
Data Sheet
0-1: $1.90
1-25: $1.71
25-100: $1.55
100-250: $1.40
