Product Summary

The LM1036M is a DC controlled tone (bass/treble) , volumeand balance circuit for stereo applications in car radio, TV and audio systems. An additional control input allows loud-ness compensation to be simply effected. Four control inputs of the LM1036M provide control of the bass, treble, balance and volume functions through application of DC volt-ages from a remote control system or, alternatively, from four potentiometers which may be biased from a zener regulatedsupply provided on the circuit.

Parametrics

LM1036M absolute maximum ratings: (1) Supply Voltage: 16V; (2) Control Pin Voltage (Pins4 ,7,9,12,14) : Vcc; (3) Operating Temperature Range: 0°C to +70°C; (4) Storage Temperature Range: -65°C to +150°C; (5) Power Dissipation: 1W; (6) Lead Temp.(Soldering,10 seconds) : 260°C.

Features

LM1036M features: (1) Wide supply voltage range, 9V to 16V; (2) Large volume control range, 75 dB typical; (3) Tone control, ±15 dB typical; (4) Channel separation, 75 dB typical; (5) Low distortion, 0.06% typical for an input level of 0.3Vrms; (6) High signal to noise, 80 dB typical for an input level of 0.3 Vrms; (7) Few external components required.

Diagrams

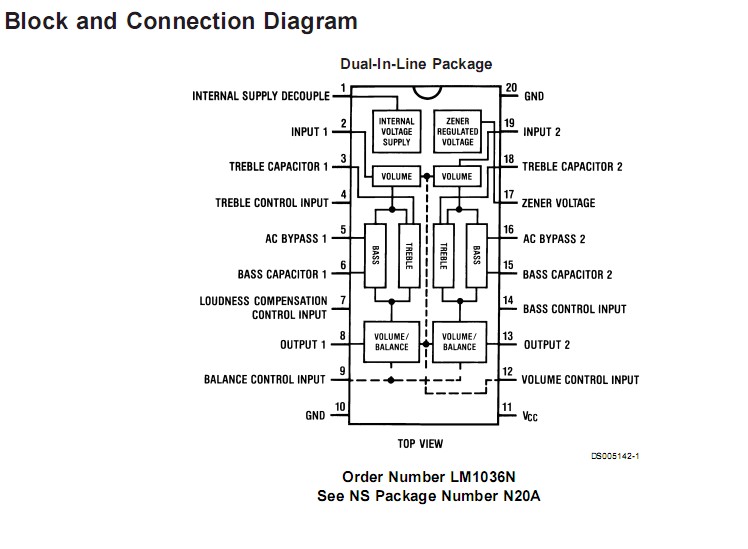

LM1036M Block and Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

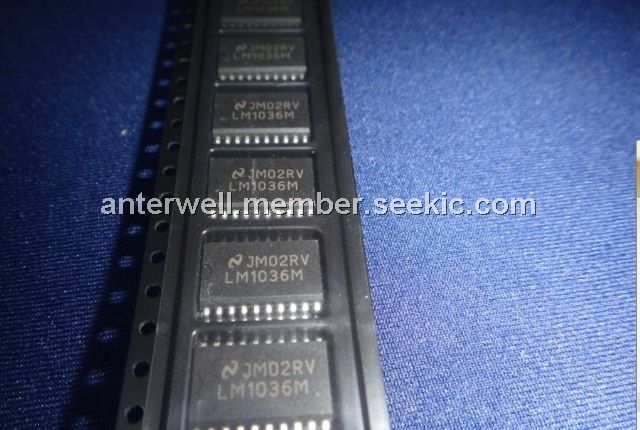

LM1036M
LM1036M
National Semiconductor (TI)
Audio Amplifiers
Data Sheet
0-396: $1.04
396-504: $0.89
504-1008: $0.68
1008-2520: $0.64
LM1036M/NOPB
LM1036M/NOPB
National Semiconductor (TI)
Audio Amplifiers
Data Sheet
0-1: $1.47
1-25: $1.18
25-100: $1.06
100-250: $0.95
LM1036MX
LM1036MX
National Semiconductor (TI)
Audio Amplifiers
Data Sheet
0-1000: $0.68
1000-3000: $0.64
3000-5000: $0.61
5000-10000: $0.59
LM1036MX/NOPB
LM1036MX/NOPB
National Semiconductor (TI)
Audio Amplifiers
Data Sheet
0-1: $1.81
1-25: $1.45
25-100: $1.31
100-250: $1.16
