Product Summary

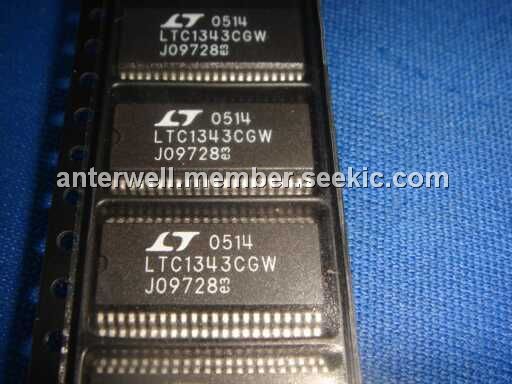

The LTC1343CGW is a 4-driver/4-receiver multiprotocol transceiver that operates from a single 5V supply. Two LTC1343CGWs form the core of a complete software-selectable DTE or DCE interface port that supports the RS232, RS449, EIA-530, EIA-530-A, V.35, V.36 or X.21 protocols. Cable termination may be implemented using the LTC1343CGW software-selectable cable termination chip or by using existing discrete designs. The applications of the LTC1343CGW include Data Networking, CSU and DSU and Data Routers.
Parametrics
LTC1343CGW absolute maximum ratings: (1)Supply Voltage: 6.5V; (2)Input Voltage,Transmitters: –0.3V to (VCC + 0.3V); Receivers: –18V to 18V; Logic Pins:–0.3V to (VCC + 0.3V); (3)Output Voltage, Transmitters: (VEE – 0.3V) to (VDD + 0.3V); Receivers: –0.3V to (VCC + 0.3V); Logic Pins: –0.3V to (VCC + 0.3V); VEE: –10V to 0.3V; VDD: –0.3V to 10V; (4)Short-Circuit Duration, Transmitter Output: Indefinite; Receiver Output: Indefinite; VEE: 30 sec; (5)Operating Temperature Range: 0 to 70℃; (6)Storage Temperature Range: – 65 to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1343CGW features: (1)Software-Selectable Transceiver Supports: RS232, RS449, EIA-530, EIA-530-A, V.35, V.36, X.21; (2)NET1 and NET2 Compliant; (3)Software-Selectable Cable Termination Using the LTC1344; (4)4-Driver/4-Receiver Configuration Provides a Complete 2-Chip DTE or DCE Port; (5)Operates from Single 5V Supply; (6)Internal Echoed Clock and Loop-Back Logic.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1343CGW |
|
IC TXRX SOFTWARE-SELECTBL 44SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1343CGW#PBF |
|
IC TXRX SOFTWARE-SELECTBL 44SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1343CGW#TR |
|
IC TXRX SOFTWARE SELECT 44SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1343CGW#TRPBF |
|
IC TXRX SOFTWARE-SELECTBL 44SSOP |
Data Sheet |
|
|
||||||||||
