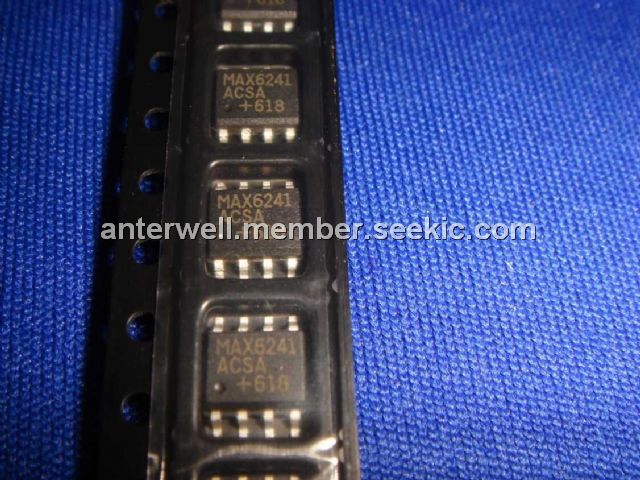

MAX6241ACSA

low-noise, precision voltage reference, SOP-8, -0.3V to +40V, 727mW, Very Low Noise, Excellent Transient Response

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~1.80

PartNumber:: MAX6241ACSA

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-07

From Other Seller

Part Number:MAX6241ACSA
US $1.50 - 1.80
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX6241ACSA is a low-noise, precision voltage reference with extremely low 1ppm/℃ temperature coefficients and excellent ±0.02% initial accuracy. The MAX6241ACSA features buried-zener technology for lowest noise performance. Load-regulation specifications are guaranteed for source and sink currents up to 15mA. Excellent line and load regulation and low output impedance at high frequency make the MAX6241ACSA ideal for high-resolution data-conversion systems up to 16 bits. The applications of the MAX6241ACSA inlcude High-Resolution Analog-to-Digital and Digital-to-Analog Converters, High-Accuracy Reference Standard, High-Accuracy Industrial and Process Control, Digital Voltmeters, ATE Equipment and Precision Current Sources.

Parametrics

MAX6241ACSA absolute maximum ratings: (1)(Voltages Referenced to GND) IN: -0.3V to +40V; (2)OUT, TRIM: -0.3V to +12V; (3)NR: -0.3V to +6V; (4)OUT Short Circuit to GND Duration (VIN ≤ 12V): Continuous; (5)OUT Short Circuit to GND Duration (VIN ≤ 40V): 5sec; (6)OUT Short Circuit to IN Duration (VIN ≤ 12V): Continuous; (7)Continuous Power Dissipation: 727mW; (8)Operating Temperature Ranges: 0 to +70℃; (9)Storage Temperature Range: -65 to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX6241ACSA features: (1)Low 1.0ppm/℃ Temperature Coefficient; (2)Very Low 1.5μVp-p Noise (0.1Hz to 10Hz); (3)±0.02% Initial Accuracy; (4)±15mA Output Source and Sink Current; (5)Low, 18mW Power Consumption; (6)Industry-Standard Pinout; (7)Optional Noise Reduction and Voltage Trim; (8)Excellent Transient Response; (9)8-Pin SO Package Available; (10)Low 20ppm/1000h Long-Term Stability; (11)Stable for All Capacitive Loads.
