MC33110P

low voltage compander, DIP-14, 2.1 to 7.0 V, Unity Gain Level, No Precision External Components

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~0.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~0.85

PartNumber:: MC33110P

Brand:: ON Semiconductor - ON | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-07

From Other Seller

Part Number:MC33110P
US $0.80 - 0.85
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

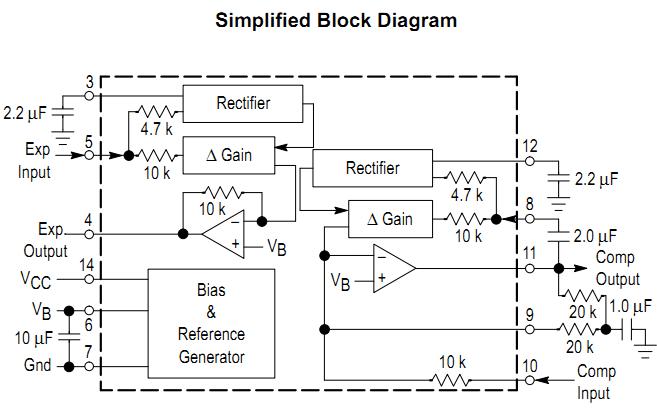

The MC33110P is a low voltage compander. The MC33110P contains two variable gain circuits configured for compressing and expanding the dynamic range of an audio signal. One circuit is configured as an expander, while the other circuit can be configured as a compressor or expander. The MC33110P has a full wave rectifier to provide average value information to a variable gain cell located in either the input stage or the feedback path. An internal, temperature stable bandgap eference provides the necessary precision voltages and currents required. The MC33110P will operate from a supply voltage of 2.1 to 7.0 V, over a temperature range of –40 to 85℃. The MC33110P is designed to accommodate an 80 dB dynamic range from –60 dB to 20 dB, referenced to 100 mVrms.

Parametrics

MC33110P absolute maximum ratings: (1)VCC Supply Voltage, VCC: 12, -0.5 Vdc; (2)High Input Voltage (Pin 5 & 10), VIH: VCC + 0.5 Vdc; (3)Low Input Voltage, VIL: –0.5 Vdc; (4)Output Source Current (Pin 4 & 11), IO+: Self–Limiting; (5)Output Sink Current, IO–: 20 mA; (6)Junction Temperature, TJ: –65 to 150℃.

Features

MC33110P features: (1)Operating Supply Voltage: 2.1 to 7.0 V; (2)No Precision External Components Required; (3)80 dB Dynamic Range Compressed to 40 dB, Re–expandable to 80 dB; (4)Unity Gain Level: 100 mVrms; (5)Adjustable Response Time; (6)Ambient Operating Temperature: –40 to 85℃; (7)Temperature Compensated Reference; (8)Applications Include Cordless Phone, CB Radio, Speakerphone, etc.
