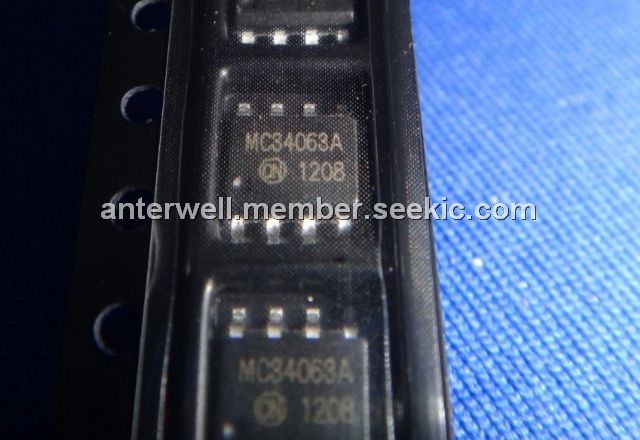

MC34063A

DC-to-DC converter contrl circuit, 100kHz, 3.0V to 40V, 1.5A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.07~0.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.07~0.12

PartNumber:: MC34063A

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MC34063A
US $0.07 - 0.12
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

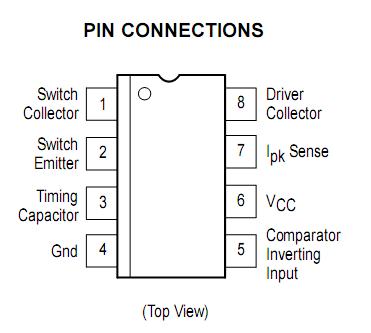

Product Summary

The MC34063A is a monolithic control circuit containing the primary functions required for DC–to–DC converter. The MC34063A consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. The The MC34063A was specifically designed to be incorporated in Step–Down and Step–Up and Voltage–Inverting applications with aminimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information.

Parametrics

MC34063A absolute maximum ratings: (1) Power Supply Voltage Vcc: 40Vdc; (2) Comparator Input Voltage Range Vir: -0.3 to +40 Vdc; (3) Switch Collector Voltage VC (switch) : 40Vdc; (4) Switch Emitter Voltage (Vpin=40V), VE (switch) : 40Vdc; (5) Switch Collector to Emitter Voltage Vce(switch) : 40Vdc; (6) Driver Collector Voltage, Vc (driver) : 40Vdc; (7) Driver Collector Current, Ic (driver) : 100mA; (8) Switch Current, Isw: 1.5A; (9) Power Dissipation and Thermal Characteristics Plastic Package, P, P1 Suffix: Pd: 1.25W (T=25°C) , Thermal Resistance RθJA：100°C/W， PD：625W (SOIC Package, D Suffix, TA=25°C) , Thermal Resistance RθJA: 160°C/W; (10) Operating Junction Temperature Tj: +150°C; (11) Operating Ambient Temperature Range: 0°C to 70°C; (12) Storage Temperature Range Tstg: -65°C to +150°C.

Features

MC34063A features: (1) Operation from 3.0V to 40V Input; (2) Low Standby Current; (3) Current Limiting; (4) Output Switch Current to 1.5A; (5) Output Voltage Adjustable; (6) Frequency Operation to 100kHz; (7) Precision 2% Reference.
