Product Summary

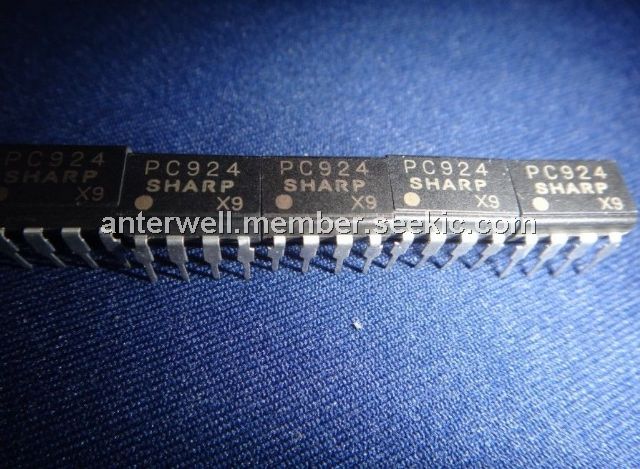

The PC924 is an OPIC photocoupler for IGBT Drive of Inverter. The PC924 is used for IGBT drive for inverter control.
Parametrics
PC924 absolute maximum ratings: (1) Forward current IF: 25mA; (2) Reverse voltage VR: 6V; (3) Supply voltage Vcc: 35V; (4) O1 Output current Io1: 0.1A; (5) O1 Peak output current IO1P: 0.4A; (6) O2 Output current IO2: 0.1A; (7) O2 Peak output current Io2p: 0.4A; (8) O1 Output voltage Vo1: 35; (9) Power dissipation Po: 500mW; (10) Isolation voltage Viso (rms) : 5.0kV; (11) Operating temperature: -20 to 80°C; (12) Storage temperature: -55 to 125°C; (13) Soldering temperature: 260°C.
Features
PC924 features: (1) Built-in direct drive circuit for IGBT drive (IO1P, IO2P : 0.4 A) ; (2) High speed response(tPHL, tPLH : MAX. 2.0μs) ; (3) Wide operating supply voltage range (VCC : 15 to 30 V, Ta= -10 to 60 °C ) ; (4) High noise reduction type (CMH=MIN. -1 500 V/μs) (CML=MIN. 1 500 V/μs) ; (5) High isolation voltage (Viso (rms) : 5 kV) .

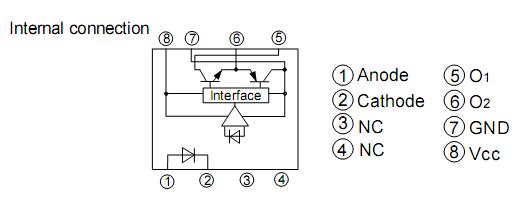

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC924 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
PC924L0NIP0F |
Sharp Microelectronics |
High Speed Optocouplers SMT Gull Wing, 8 PIN, 1Kpcs T&R |
Data Sheet |
Negotiable |
|
||||||||
 |
PC924L0NSZ0F |
Sharp Microelectronics |
High Speed Optocouplers Photocoupler IGBT Driver |
Data Sheet |
Negotiable |
|
||||||||
|
PC924L0YSZ0F |
Sharp Microelectronics |
High Speed Optocouplers VDE Approved PC924L0NSZ0F |
Data Sheet |
|
|
||||||||
