Product Summary
The SPA2318 is a high efficiency GaAs Heterojunction Bipolar Transistor (HBT) amplifier housed in a low-cost surface-mountable plastic package. It is fabricated using molecular beam epitaxial growth technology which produces reliable and consistent performance from wafer to wafer and lot to lot. The applications of the SPA2318 include WCDMA Systems, PCS Systems, Multi-Carrier Applications.
Parametrics
SPA2318 absolute maximum ratings: (1)Max Supply Current (IC1) at VCC typ: 150 mA; (2)Max Supply Current (IC2) at VCC typ: 750 mA; (3)Max Device Voltage (VCC) at ICC typ: 6.0 V; (4)Max RF Input Power: 16 dBm; (5)Max Junction Temp (TJ): +160 ℃; (6)Max Storage Temp: +150 ℃.
Features
SPA2318 features: (1)Now Available in Lead-Free, RoHS Compliant, and Green Packaging; (2)High Linearity Performance: +21dBm IS-95 Channel Power at -55dBc ACP; +20.7dBm WCDMA Channel Power at -50dBc ACP; +47dBm Typ. OIP3; (3)On-Chip Active Bias Control; (4)High Gain: 24dB Typ. at 1960MHz; (5)Patented High Reliability GaAs HBT Technology; (6)Surface-Mountable Plastic Package.

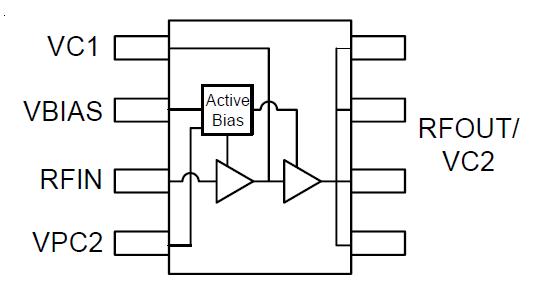

Diagrams
