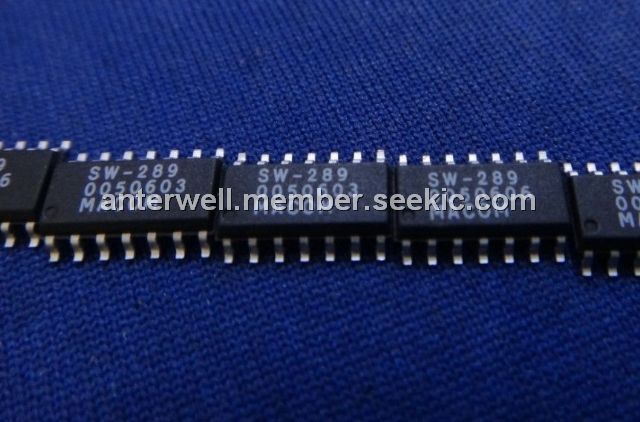

Product Summary
The SW-289 is a is a GaAs MMIC DPDT switch in a low cost SOIC 14-lead surface mount plastic package. The SW-289 is ideally suited for use where very low power consumption is required. The applications of the SW-289 include transmit/receive switching, switch matrices, digital step attenuators, and filter banks in systems such as: adio and cellular equipment, PCM, GPS, fiber optic modules, and other battery powered radio equipment.
Parametrics
SW-289 absolute maximum ratings: (1) Max.Input Power 0.05 GHz: +27dBm, 0.5-2.0 GH: +34dBm; (2) Control Voltage: +5V, -8.5V; (3) Operating Temperature: -40°C to +85°C; (4) Storage Temperature: -65°C to +150°C.
Features
SW-289 features: (1) Very Low Power Consumption: 100 μw; (2) Low Insertion Loss: 0.5 dB; (3) High Isolation: 25dB up to 2GHz; (4) Very High Intercept Point: 48 dBm IP3; (5) Nanosecond Switching Speed; (6) Temperature Range: -40°C to +85°C; (7) Low Cost SOIC14 Plastic Package; (8) Tape and Reel Packaging Available.

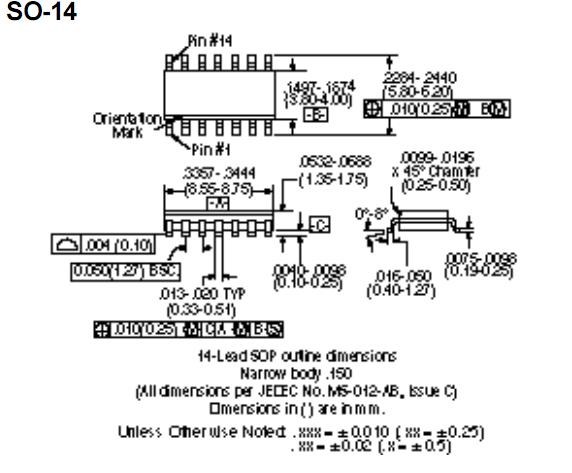

Diagrams
