Product Summary
The TCA305G is a Proximity Switch.
Parametrics
TCA305G absolute maximum ratings: (1)Supply voltage: 35 V; (2)Output voltage: 35 V; (3)Output current: 50 mA; (4)Distance, hysteresis resistance: 0 Ω; (5)Capacitances: 5 μF; (6)Junction temperature: 150 ℃; (7)Storage temperature range: -55 to 125 ℃.
Features
TCA305G features: (1)Lower open-loop current consumption; IS < 1 mA; (2)Lower output saturation voltage; (3)The temperature dependence of the switching distance is lower and compensation of the resonant circuit TC (temperature coefficient) is easier; (4)The sensitivity is higher, so that larger switching distances are possible and coils of a lower quality can be used.

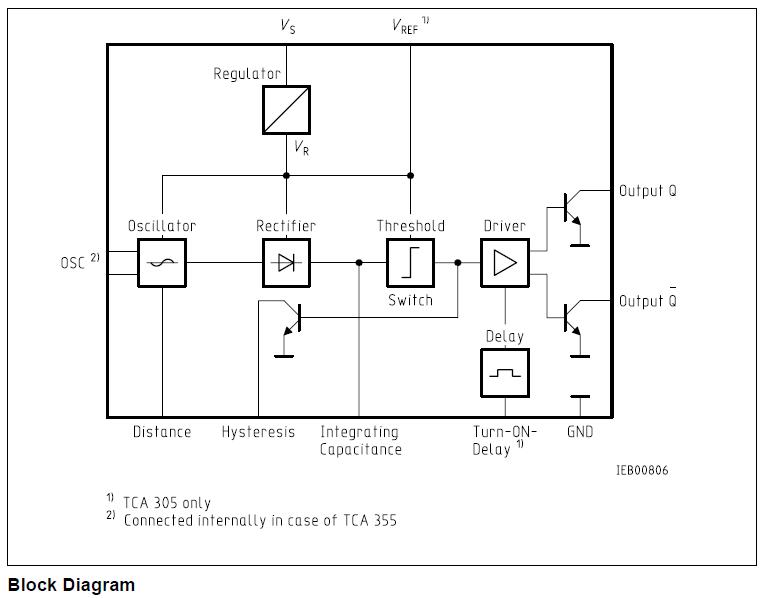

Diagrams
