Product Summary

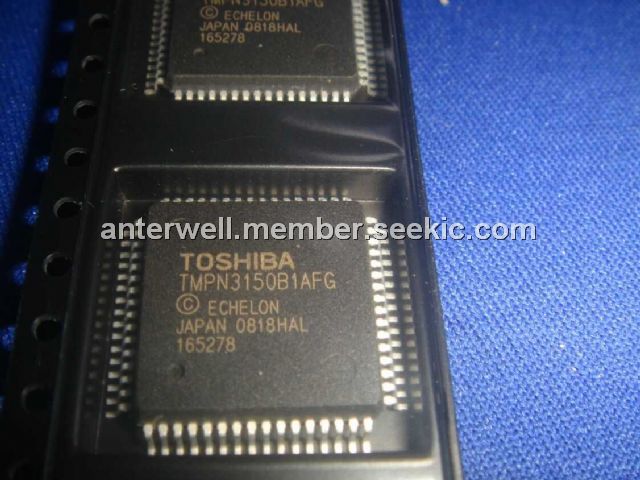

The TMPN3150B1AFG is a Neuron Chip which configures LONWORKS nodes in combination with external memory. Neuron Chips have all the built-in communications and control functions required to implement LONWORKS nodes. These nodes of TMPN3150B1AFG may then be easily integrated into highly-reliable distributed intelligent control networks.

Parametrics

TMPN3150B1AFG absolute maximum ratings: (1)Power Supply Voltage: -0.3~7.0 V; (2)Input Voltage VIN: -0.3~VDD+0.3 V; (3)Power Dissipation: 800 mW; (4)Storage Temperature: -65~150 ℃.

Features

TMPN3150B1AFG features: (1)I / O Functions: Eleven programmable I / O pins, Two programmable 16-bit timers and counters built in, 34 different types of I / O functions to handle a wide range of input and output; (2)Network functions: Two CPUs for communication protocol processing built in, The communications and application CPUs execute in parallel, Equipped with a built-in LonTalk protocol which supports all seven levels of the OSI reference model with ISO; (3)Other functions: Application programs are also stored within the EEPROM.

Diagrams

TMPN3150B1AFG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TMPN3150B1AFG
TMPN3150B1AFG

Other


Data Sheet

Negotiable
TMPN3150B1AFG(I)
TMPN3150B1AFG(I)

Toshiba

Network Controller & Processor ICs Neuron Chip w/ ext ROM I/F

Data Sheet

Negotiable
