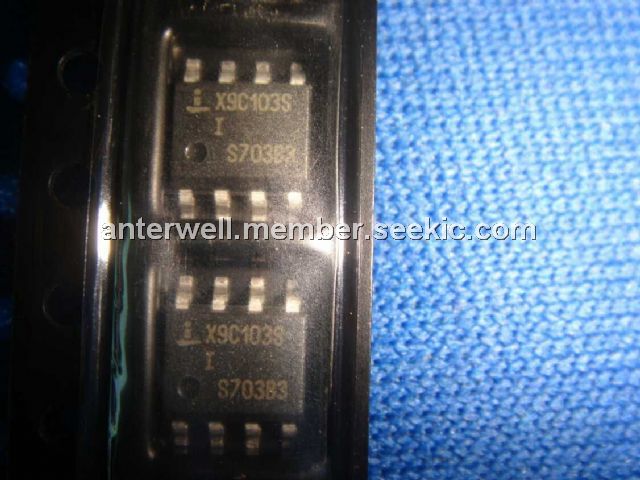

Product Summary

The X9C103SI is an Intersil digitally controlled (XDCP) potentiometer. It consists of a resistor array, wiper switches, a control section, and nonvolatile memory.

Parametrics

X9C103SI absolute maximum ratings: (1)Temperature under Bias: –65℃ to +135℃; (2)Storage Temperature: –65℃ to +150℃; (3)Voltage on CS, INC, U/D and VCC with Respect to VSS: –1V to +7V; (4)Voltage on VH and VL Referenced to VSS DV = |VH–VL|: –8V to +8V; (5)Lead Temperature (Soldering 10 seconds): 300℃; (6)Wiper Current: ±1mA.

Features

X9C103SI features: (1)Solid-state potentiometer; (2)3-wire serial interface; (3)100 wiper tap points: Wiper position stored in nonvolatile memory and recalled on power-up; (4)99 resistive elements: Temperature compensated, End to end resistance, ±20%, Terminal voltages, ±5V; (5)Low power CMOS: VCC = 5V, Active current, 3mA max., Standby current, 750μA max.; (6)High reliability: Endurance, 100,000 data changes per bit, Register data retention, 100 years.

Diagrams

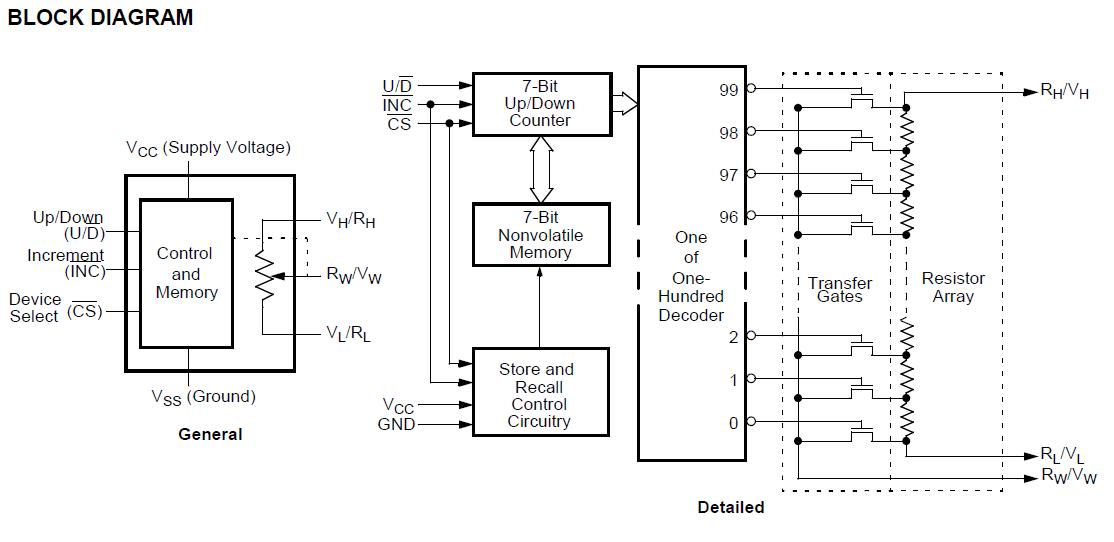

X9C103SI block diagram
