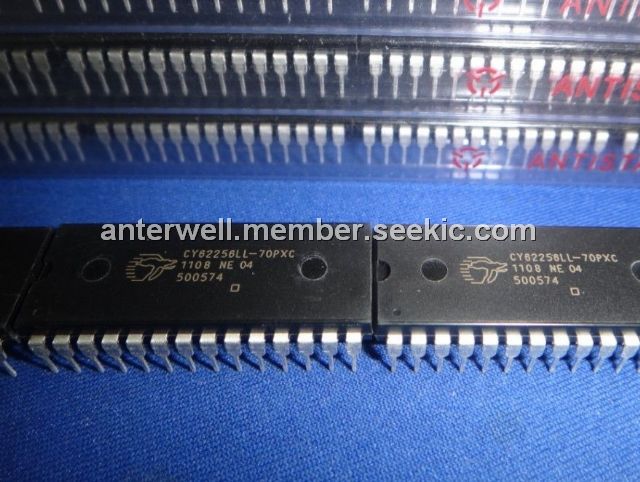

CY62256LL-70PXC

256K static RAM, 4.5V -5.5V, 20mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.85~1.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.85~1.05

PartNumber:: CY62256LL-70PXC

Brand:: Cypress Semiconductor - Cypress | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-28

From Other Seller

Part Number:CY62256LL-70PXC
US $0.85 - 1.05
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

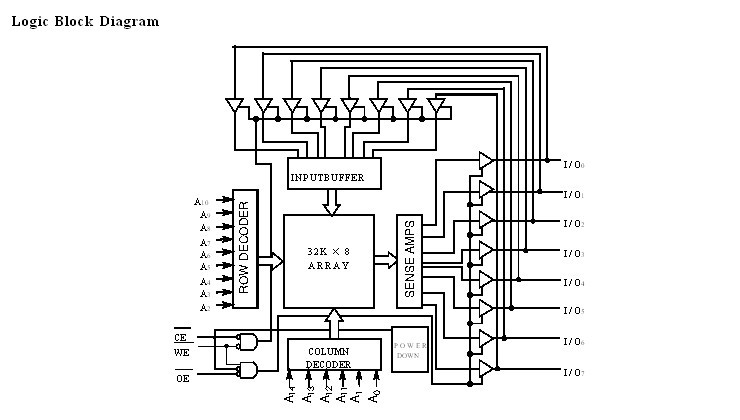

The CY62256LL-70PXC is a high-performance CMOS static RAM organized as 32K words by 8 bits. Easy memory expansion of the CY62256LL-70PXC is provided by an active LOW chip enable (CE) and active LOW output enable (OE) and Tri-state drivers. The CY62256LL-70PXC has an automatic power-down feature,reducing the power consumption by 99.9% when deselected. Reading the CY62256LL-70PXC is accomplished by selecting the device and enabling the outputs, CE and OE active LOW,while WE remains inactive or HIGH.

Parametrics

CY62256LL-70PXC maximum ratings : (1) Storage Temperature: –65°C to +150°C; (2) Ambient Temperature with Power Applied –55°C to +125°C; (3) Supply Voltage to Ground Potential (Pin 28 to Pin 14) -0.5V to +7V ; (4) DC Voltage Applied to Outputsin High-Z State: –0.5V to VCC + 0.5V; (5) DC Input Voltage[3] –0.5V to VCC + 0.5V; (6) Output Current into Outputs (LOW) 20mA; (7) Static Discharge Voltage > 2001V(per MIL-STD-883, Method 3015) , (80Latch-up Current > 200 mA.

Features

CY62256LL-70PXC features: (1) High speed: 55nS; (2) Temperature Ranges Commercial: 0°C to 70°C; (3) Industrial: -40°C to 35°C; (4) Automotive: -40°C to 125°C; (5) Voltage range: 4.5V-5.5V; (6) Low active power and standby power; (7) TTL-compatible inputs and outputs; (8) CMOS for optimum speed/power.
