Product Summary

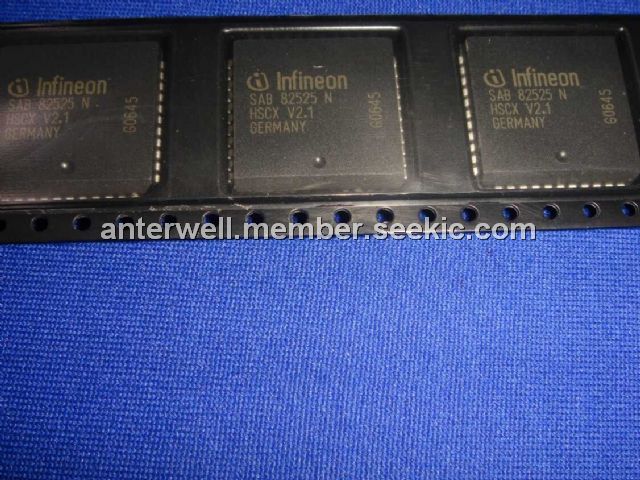

The SAB82525NV2.1 is a High-Level Serial Communication Controller which is compatible to the SAB 82520 HSCC with extended features and functionality (HSCX).
Parametrics
SAB82525NV2.1 absolute maximum ratings: (1)Ambient temperature under bias: SAB: 0 to 70 ℃, SAF: – 40 to 85 ℃; (2)Storage temperature: – 65 to 125 ℃; (3)Voltage on any pin with respect to ground: – 0.4 to VDD + 0.4 V; (4)Maximum voltage on any pin: 6 V.
Features
SAB82525NV2.1 features: (1)Different modes of data encoding; (2)Modem control lines (RTS, CTS, CD); (3)Support of bus configuration by collision resolution; (4)Programmable bit inversion; (5)Transparent receive/transmit of data bytes without HDLC framing; (6)Continuous transmission of 1 to 32 bytes possible; (7)Data rate up to 4 Mbit/s.
