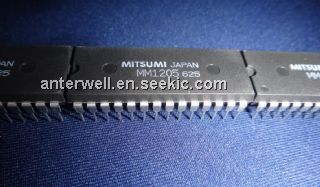

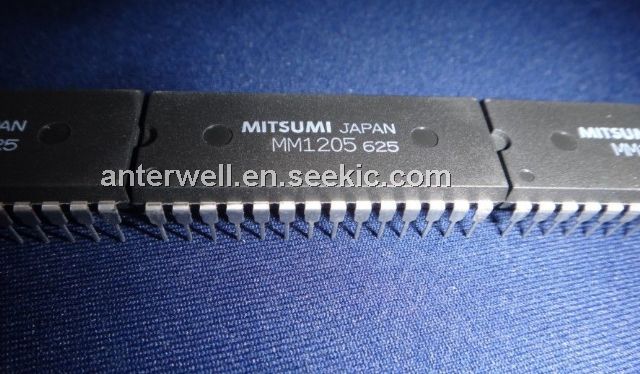

Product Summary

MM1205XD are wideband RGB video amplifiers with DC control, developed for use in monitors. The main differences between MM1207XD and MM1205XD are video amp bandwidth and output rise time, and output fall time. Other characteristics are the same.

Features

1. Built-in wideband video amp 85MHz@ -3dB (4VP-P output)
2. Matched (±0.1dB or 1.2%) contrast adjustment attentuators built-in
3. Built-in cutoff and luminance adjustment single end input comparators with external gate control
4. Gain of each video amp controlled independently
5. Built-in high input impedance DC contrast control, 0~4V (> 40dB range)
6. Built-in high input impedance DC drive control, 0~4V (±3dB range)
7. 7VP-P output swing (band slightly attenuated)
8. Output blanking function
9. Output can drive almost all hybrid or discrete CRT drivers directly

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MM1205
MM1205
Other

Data Sheet
Negotiable
