Product Summary
The TA8435HQ is a PWM chopper type sinusoidal micro step bipolar stepping motor driver. Sinusoidal mircro step operation of the TA8435HQ is accomplished only a clock signal inputting by means of built-in hard ware.
Parametrics
TA8435HQ aboslute maximum ratings: (1) Supply Voltage Vcc: 5.5V; (2) Output Voltage Vm: 40V; (3) Output Current: Io (PEAK) : 2.5A, Io (PEAK) : 1.5A; (4) MO Output Current Io (MO) : ±2mA; (5) Input Voltage Vin -Vcc V; (6) Power Dissipation PD : 5W, 43W; (7) Operating Temperature: -40 - 85°C; (8) Storage Temperature Tstg: -55 - 150°C; (9) Feed Back Voltage VNF: 1.0V.
Features
TA8435HQ features: (1) 1 chip bipolar sinusoidal micro step stepping motor driver; (2) Output current up to 1.5A (AVE.) and 2.5A (PEAK) ; (3) PWM chopper type; (4) Structured by high voltage Bi-CMOS process technology; (5) Forward and reverse rotation are available; (6) Output Monitor available with MO. IO (MO) =±2mA.

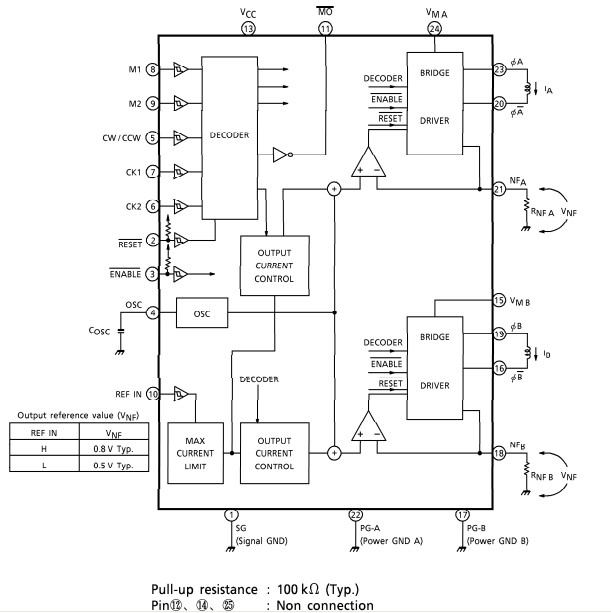

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

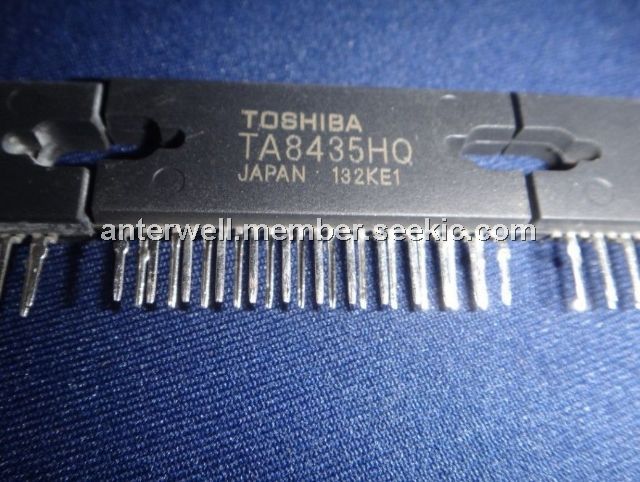

TA8435HQ(5) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers Stepping Motor |
Data Sheet |
Negotiable |
|
|||||
